Series Blauberg Smart Wi-Fi

Name: Smart Wi-Fi
Uploaded: 2026-10-09T00:36:13+03:00
Description: Smart exhaust fans with stylish design for enhanced comfort in bathrooms, shower rooms, kitchens and Wi-Fi control from a smartphone

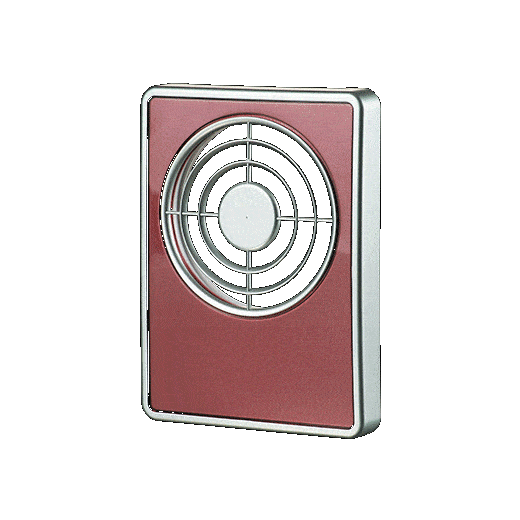

Smart exhaust fans with stylish design for enhanced comfort in bathrooms, shower rooms, kitchens and Wi-Fi control from a smartphone

Impeller type: Axial
Short spigot
Humidity sensor
Motion sensor

Options

INTELLIGENT HUMIDITY SENSOR

The fan has an integrated intelligent humidity sensor with the

following operation modes:

Auto – intelligent humidity control.
It provides for humidity threshold change and fan speed selection automatically. The fan independently selects the optimum humidity threshold for the room in which it is installed. Fan operation algorithm is selected based on analysing the statistical data of indoor humidity level.
Manual mode allows setting the humidity threshold in range from 40 % to 80 %. If this threshold is exceeded, the fan turns on or switches to a higher speed.

AUTOMATIC OPERATION BASED ON TEMPERATURE SENSOR

If the air temperature exceeds the set point, the fan will switch to Max speed and will return to the previous mode only after the indoor temperature drops by 4 °C below the set point.

TIMER

The fan is equipped with two different timers to provide maximal comfort:

Turn-on delay timer allows to delay switching to a higher speed for 2 or 5 minutes after sensor activation.
Turn-off delay timer is designed to prolong the fan operation for 5, 15, 30 or 60 minutes in the mode caused by sensor activation or Boost mode activation.

24 HOURS

24 hours – permanent low-speed operation mode.

Do not disturb – the function is only available when the 24 hours mode is activated. This function allows for setting the time interval so that the fan will not respond to sensors or switch actuation, and will operate at minimum speed in this mode.

INTERVAL VENTILATION

Automatic interval ventilation (function is only available when the 24 hours mode is deactivated). This mode allows ventilating the room every 12 hours for 30 minutes at the set speed.

SMOOTH SPEED CONTROL

The fan has an integrated smooth speed control function:

Silent – fan operation mode, which is activated after the signal from the motion sensor or external switch. The speed in the Silent mode can be adjusted in the range from 30 % to 100 % of the fan maximum performance.
Max (Boost Mode) – fan operation mode, which is activated when the humidity threshold is exceeded. The speed of this mode can be adjusted in the range from 30 % to 100 % of the maximum performance.

MOTION SENSOR (FOR SMART IR Wi-Fi)

When the motion sensor is activated the turn-on delay timer is switched on. Then the fan will switch to Silent speed. Once there is no motion detected, and after turn-off delay time the fan will switch to standby mode.

Manage and configure the unit effortlessly via the dedicated smartphone app. Configure custom operating modes, calibrate sensor, and integrate the fan with your local Wi-Fi network or cloud server for seamless remote control anytime, anywhere.

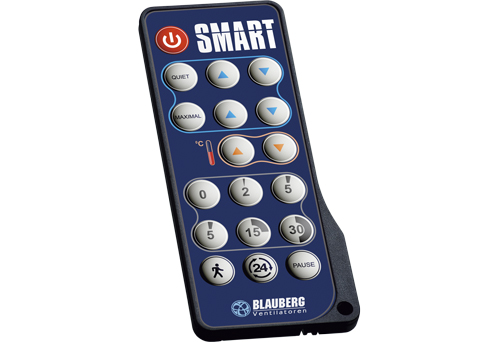

The unit is controlled via a user-friendly remote controller that allows to quickly adjust all the key operating parameters. Users can easily toggle speeds, select operating modes, and fine-tune system settings from anywhere in the room, delivering a seamless blend of convenience, precise control, and easy operation.

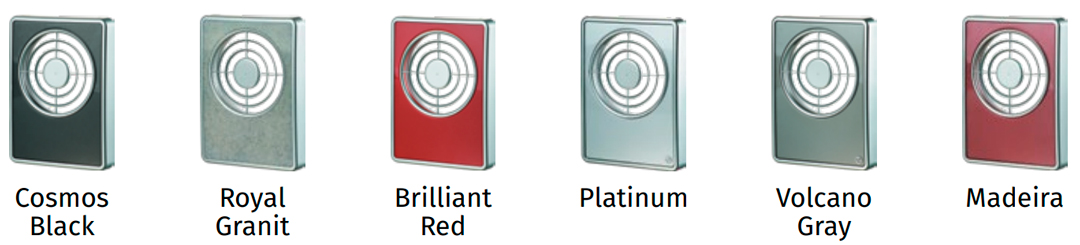

Color options

Complement any architectural project or interior scheme with custom decorative panels. Available in a wide range of premium finishes, these panels allow for seamless integration into modern commercial and residential spaces without compromising visual design standards.

Video mounting

Easy installation

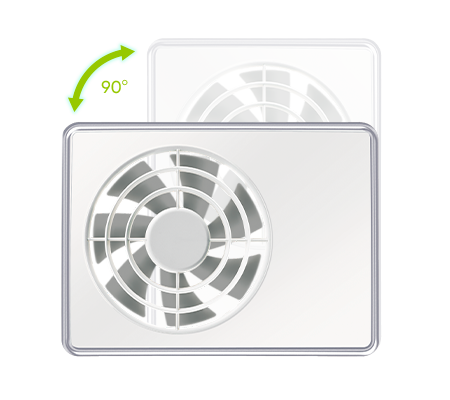

The fan can be installed either horizontally or vertically on the wall or ceiling. An adjustable spigot enables installation of the Smart Wi-Fi fan in air ducts with a diameter of 100 or 125 mm.

Compatible Accessories

A range of additional accessories is available to enhance the functionality, control options, and installation efficiency of Blauberg Smart Wi-Fi.

Models

FAQ

How is the fan installed?

Preparation & Mounting: Follow the instructions provided with your specific model, which can be found in the product manual (passport) or viewed in the installation video. Units are mounted to a wall or ceiling, either directly into a ventilation shaft or via a flexible duct secured with a clamp.

Connection & Verification: Once fixed with suitable screws, connect the fan to the power grid and verify proper operation across all modes.

Professional Installation: For safety and warranty compliance, electrical connections should be performed by a certified electrician.

What is the difference between Blauberg Smart and Blauberg Smart IR?

The Blauberg Smart IR differs from the standard Blauberg Smart exclusively by the integration of an infrared (IR) motion sensor.

While all other technical specifications, airflow performance, and functional settings remain identical, the IR version automatically triggers ventilation upon detecting movement within its coverage area — offering enhanced automated control for commercial and residential spaces.

How often should the fan be cleaned?

Regular maintenance is recommended to maintain reliable and efficient performance. For residential units like the Blauberg Smart, cleaning should be performed every six months, depending on environmental conditions.

Typical maintenance includes detaching the front cover, carefully cleaning internal surfaces with a soft brush or dry cloth, and rinsing the cover if required. Ensure all components are thoroughly dry before reassembling and restoring power.
