/ Product catalogue / Decentralized ventilation units / Decentralized HRU for schools and public buildings / Vertical / CIVIC EC LB V.2 / CIVIC EC LB 1200 L S21 V.2

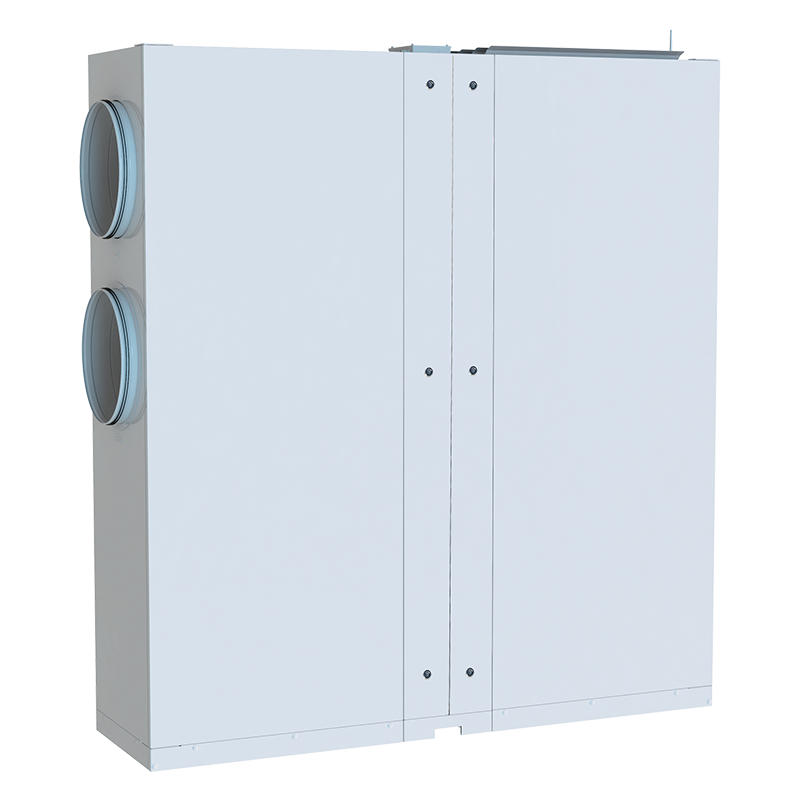

Blauberg CIVIC EC LB 1200 L S21 V.2

Blauberg CIVIC EC LB 1200 L S21 V.2 - The CIVIC EC LB V.2 units are designed for singleroom ventilation of schools, offices and other public and commercial premises
Series: CIVIC EC LB V.2
The CIVIC EC LB V.2 units are designed for singleroom ventilation of schools, offices and other public and commercial premises
  • Sound pressure level LpA at 3 m: 30 dB(A)
  • Sound pressure level LpA at 1 m: 40 dB(A)
  • Heat exchanger type: Counter flow
  • Heat exchanger material: Polystyrene
  • Supply filter: ISO ePM1 60 % (F7)
  • Extract filter: ISO Coarse >60 % (G4)
  • Sound-insulated casing
  • Bypass: Auto
  • BMS protocol: ModBus
  • Control: Smartphone
  • Casing material: Coated steel
  • CO2 sensor: Optional
  • PM2.5 sensor: Optional
  • Temperature sensor
Unit of measurement CIVIC EC LB 1200 L S21 V.2
Connected air duct size mm 400
Phases - 1
Minimum supply voltage V 230
Maximum supply voltage V 230
Power supply frequency Hz 50/60
Rated power W 345
Unit current A 2.3
Maximum airflow m³/h 1240
Sound pressure level LpA at 3 m dB(A) 30
Sound pressure level LpA at 1 m dB(A) 40
Heat recovery efficiency, max % 96
Heat exchanger type - Counter flow
Heat exchanger material - Polystyrene
Weight kg 352
Supply filter - ISO ePM1 60 % (F7)
Extract filter - ISO Coarse >60 % (G4)
Transported air temperature (max) °С 40
Transported air temperature (min) °С -25
Ambient air temperature max °С 40
Ambient air temperature min °С 1
Ingress protection rating - IP20
Ambient air humidity max % 60
Ingress protection rating of the drive - IP44
Article - 8090929
Datasheet
CIVIC EC LB V.2 - data sheet
1.48 Mb
Manual
S21 - user's manual
626 Kb
Manual
Modbus table for connecting S21 automation to BMS - user's manual
141 Kb
Manual
AH CIVIC EC LB - installation instruction (B113-14EN-01)
1.46 Mb
Manual
CIVIC EC LB V.2 - user's manual (B142EN-08)
3.6 Mb
Manual
CIVIC EC LB 1200 V.2 - user's manual (B142-1EN-03)
3.46 Mb
CIVIC EC LB 1200 L S21 V.2 - image 1
322 Kb
Ø D H H1 H2 H3 H4 L L1 W W1
400 2000 2106 545 1110 70 535 265 1900 1951
Condensation drainage
Name Photo Description
Blauberg SFK 20x32 SFK 20x32 Hydraulic syphon for condensate drainage
Blauberg CP-2 CP-2 Drain pump
Control Panels
Name Photo Description
Blauberg S25 S25 LCD control panel
Blauberg S22 S22 Control panels
Blauberg S22 Wi-Fi S22 Wi-Fi Control panels
CO2 sensors
Name Photo Description
Blauberg CD-1 CD-1 CO2 sensors
Blauberg CD-2 CD-2 CO2 sensors
Blauberg CD-3 CD-3 Carbon dioxide sensor
Humidity sensors
Name Photo Description
Blauberg FS2 FS2 Humidity sensor
Other accessories
Name Photo Description
Blauberg FP 540x450x48 F7 FP 540x450x48 F7 F7 panel filter
Blauberg FP 450x395x48 G4 FP 450x395x48 G4 G4 panel filter
