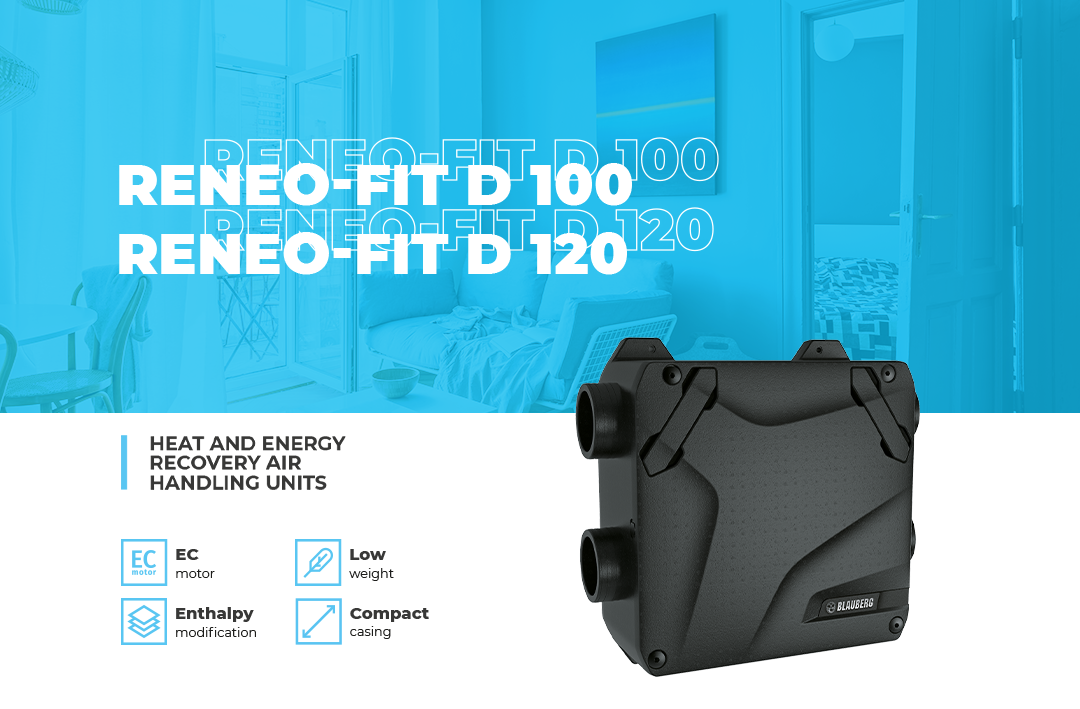

Series Blauberg Reneo-Fit D 100 / 120

Suspended heat and energy recovery air handling units

Heat exchanger type: Counter flow
Heat exchanger material: Polystyrene, Enthalpy
Sound-insulated casing
BMS protocol: ModBus
Casing material: EPP
Humidity sensor: Optional
CO2 sensor: Optional
PM2.5 sensor: Optional

Air handling units for efficient supply and exhaust ventilation in flats and apartments.
EPP casing with its aerodynamic shape and excellent insulation characteristics.
The Reneo-Fit D 100/120 units are designed for suspended ceiling mounting.
Heat recovery minimizes ventilation heat losses during cold season and reduce air conditioner load during hot season.
Controllable air exchange for creating the best suitable indoor microclimate.
Available for installation with S21 controller.

EPP casing

Blauberg Reneo-Fit D 100/120 is made from a modern material – extruded polypropylene (ЕРР). The material is very light, which allows to decrease the total weight of the system and ensures easy installation. ЕРР resists corrosion, preserving the product’s long-term high efficiency. It also has a low thermal conductivity, allowing to decrease heat losses in the ventilation system. This ensures more effective system operation and reduces air conditioning and heating expenses.

All functions in your smartphone

Reneo – it’s not just ventilation, it’s a real climate station in your home. With the S21 controller you can control all functions and parameters via the mobile app (the controller is not included in the delivery set).

AND EVEN MORE

Just say «Hello Google» and test, control and run Reneo in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.

Enthalpy heat exchanger

If air humidity management is just as important for you as temperature management, then enthalpy heat exchanger is your best choice (The Reneo-Fit D 100/120 unit).

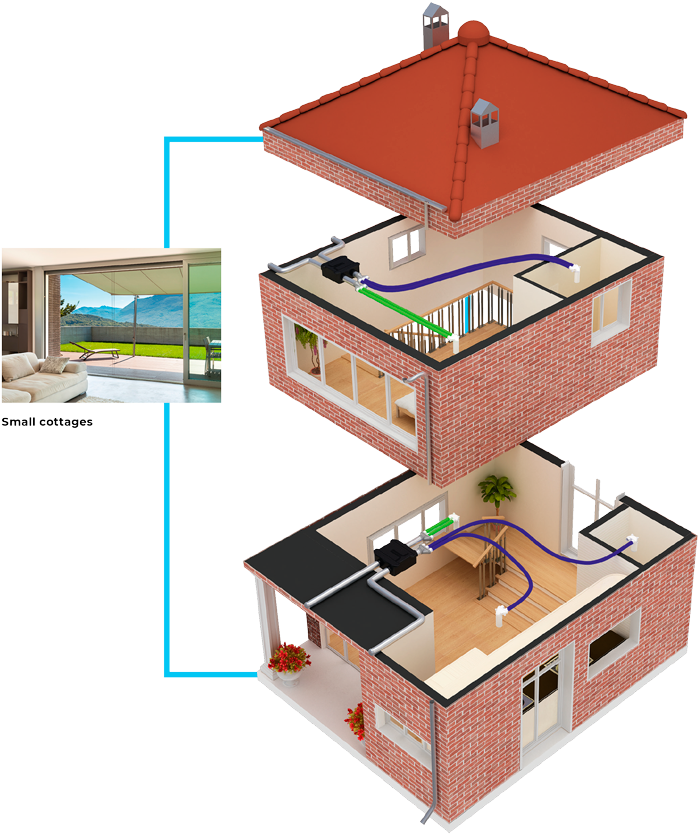

Application

Lineup Blauberg Reneo-Fit D 100 / 120	Connected air duct size, mm	Rated power, W	Maximum airflow, m³/h	Service side	Control system	Preheater	Reheater	BMS protocol
Reneo-Fit D 100 R S21	100/125	45	130	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 100 L S21	100/125	45	130	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 100 R S14	100/125	45	130	Right	S14			N/A
Reneo-Fit D 100 L S14	100/125	45	130	Left	S14			N/A
Reneo-Fit D 100-E R S21	100/125	45	130	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 100-E L S21	100/125	45	130	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 100-E R S14	100/125	45	130	Right	S14			N/A
Reneo-Fit D 100-E L S14	100/125	45	130	Left	S14			N/A
Reneo-Fit D 120 R S21	100/125	59	156	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 120 L S21	100/125	59	156	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 120 R S14	100/125	59	156	Right	S14			N/A
Reneo-Fit D 120 L S14	100/125	59	156	Left	S14			N/A
Reneo-Fit D 120-E R S21	100/125	59	156	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 120-E L S21	100/125	59	156	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 120-E R S14	100/125	59	156	Right	S14			N/A
Reneo-Fit D 120-E L S14	100/125	59	156	Left	S14			N/A
