/ Product catalogue / Commercial and industrial ventilation / Kitchen exhaust fans / Kitchen / Iso-VK

Series Blauberg Iso-VK

Series Blauberg Iso-VK - Kitchen - Kitchen exhaust fans
New
Kitchen inline fans in sound-insulated casings with operational temperature of 120 °C
  • Sound-insulated casing
  • Impeller type: Centrifugal impeller with backward curved blades
Iso-VK is a series of kitchen exhaust fans in a sound-insulated casing equipped with AC motors. It provides an airflow capacity of up to 25 500 m³/h and is designed for continuous operation at temperatures up to 120 °C. Available air duct sizes range from 315 to 800 mm.
Use
It is ideally suited for various ventilation systems in HoReCa facilities, including industrial kitchens, and for removing gases generated during welding operations.

Industrial kitchens

Bakerie

Cafés and restaurant

Design
  • Casing made of aluminium frame and removable aluzinc thermal- and sound-insulated double-skinned sandwich panels.
  • Sound insulated casing (mineral wool 20 mm).
  • Due to corrosion-resistant casing and thermal insulation the fan is suitable for external mounting.

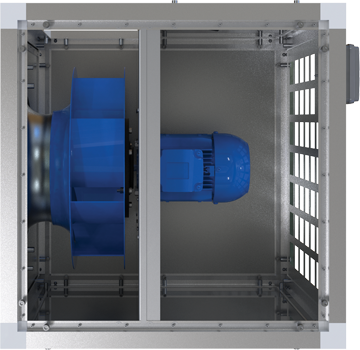

Motor
  • Motor is located outside the airflow and separated from the impeller by a metal panel.
  • Highly reliable single-phase or three-phase motor with steel high-performance centrifugal impeller with backward curved blades.
  • Equipped with ball bearings for extended service life.
Flexibility of mounting
The airflow direction can be easily changed by repositioning the panels or service doors.

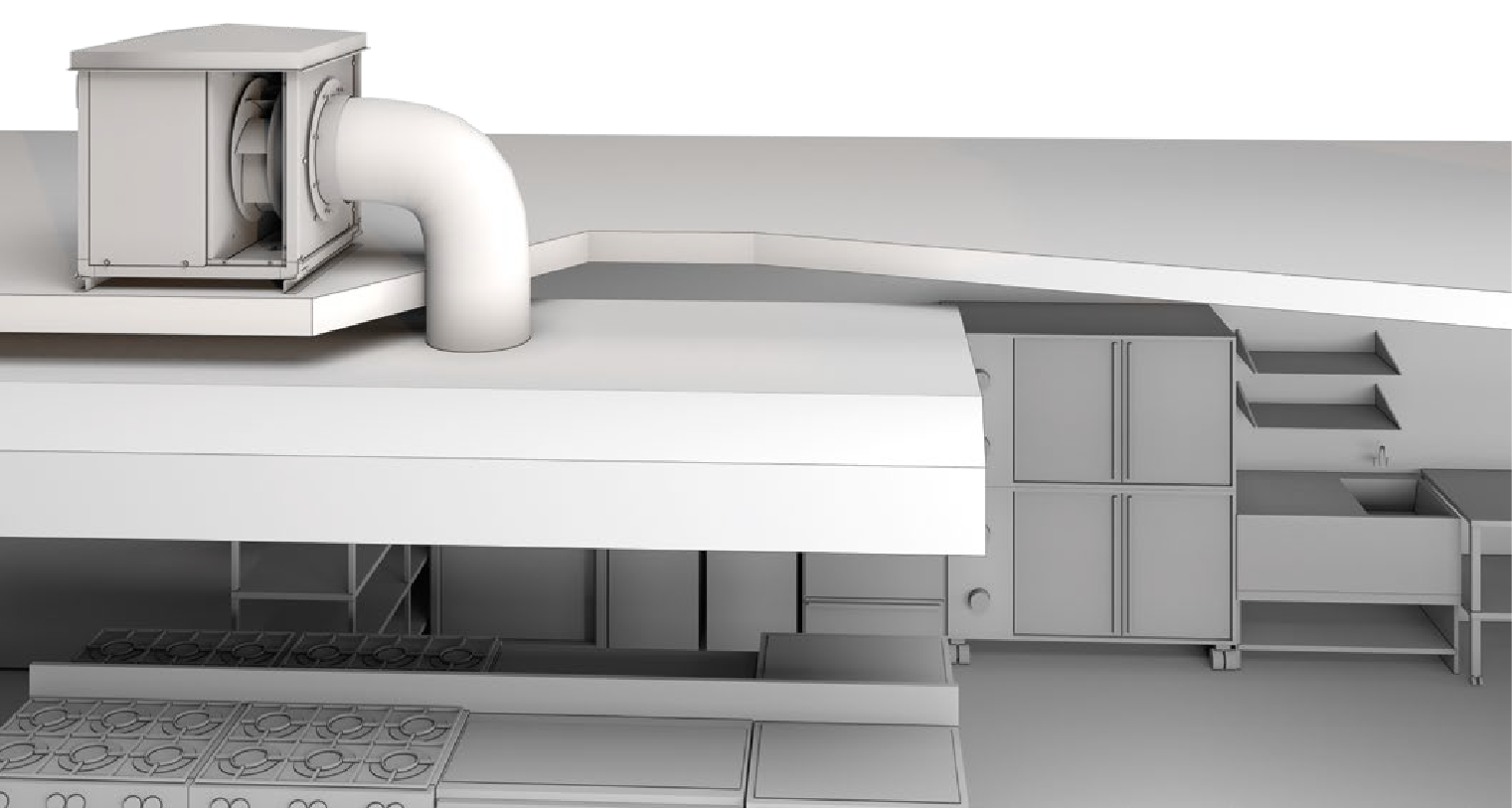

Application

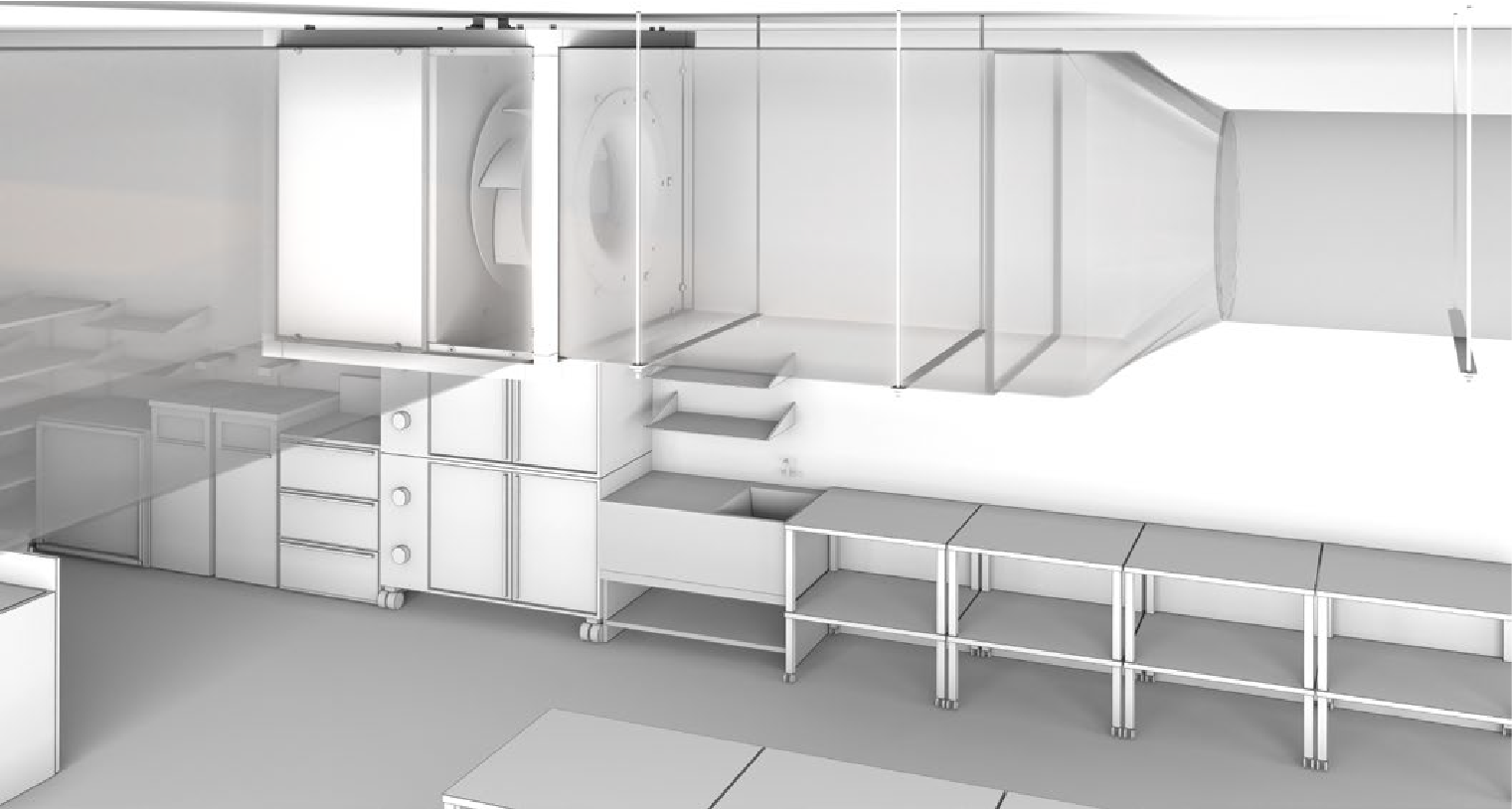

Indoor application

Outdoor application

Easy maintenance
The units are designed for easy maintenance and are compatible with high-pressure cleaning tools (washable with Kärcher cleaning tools); an integrated drainage system ensures the efficient removal of water and contaminants.

Washable with Kärcher cleaning tools

Filters: Casing material: Aluzinc
Lineup Blauberg Iso-VK Connected air duct size, mm Rated power, W Maximum airflow, m³/h Article
Blauberg Iso-VK 315 2D Iso-VK 315 2D
315 1100 4460 8089268
Blauberg Iso-VK 315 2E Iso-VK 315 2E
315 1100 4460 8089275
Blauberg Iso-VK 315 4D Iso-VK 315 4D
315 250 1910 8089282
Blauberg Iso-VK 315 4E Iso-VK 315 4E
315 250 1910 8089299
Blauberg Iso-VK 355 4D Iso-VK 355 4D
355 370 3200 8089305
Blauberg Iso-VK 355 4E Iso-VK 355 4E
355 370 3200 8089312
Blauberg Iso-VK 400 4D Iso-VK 400 4D
400 550 4550 8089329
Blauberg Iso-VK 400 4E Iso-VK 400 4E
400 550 4550 8089336
Blauberg Iso-VK 450 4D Iso-VK 450 4D
450 750 5920 8089343
Blauberg Iso-VK 450 4E Iso-VK 450 4E
450 750 5920 8089350
Blauberg Iso-VK 500 4D Iso-VK 500 4D
500 1500 9100 8089367
Blauberg Iso-VK 500 4E Iso-VK 500 4E
500 1500 9100 8089374
Blauberg Iso-VK 560 4D Iso-VK 560 4D
560 3000 12750 8089381
Blauberg Iso-VK 630 4D Iso-VK 630 4D
630 4000 17300 8089398
Blauberg Iso-VK 710 4D Iso-VK 710 4D
710 7500 25500 8089411
Blauberg Iso-VK 710 6D Iso-VK 710 6D
710 2200 16400 8089404
Blauberg Iso-VK 800 6D Iso-VK 800 6D
800 4000 21860 8089428
Datasheet
Iso-VK - data sheet
1.03 Mb
Datasheet
Catalogue "Kitchen ventilation" 2025
3.3 Mb
Manual
Iso-VK (EC) - user's manual (B262EN-04)
3.11 Mb
Manual
Iso-VK - user's manual (B262-1EN-01)
2.88 Mb
