Series Blauberg Freshpoint

Smart HRV unit for single-room ventilation with air filtration, an electric heater, customizable air flow settings and a user-friendly interface

Heat recovery efficiency: 85 %
Filter: G3
Motor type: EC
Preheater: Electric
Control: Smartphone
Casing material: Plastic
Humidity sensor

Freshpoint is an advanced decentralized wall-mounted ventilation unit equipped with heat recovery, designed for both residential and commercial spaces. Its compact design, complemented by a range of built-in air quality sensors and extensive control features, positions Freshpoint as a top-tier offering on the market.

Freshpoint is equipped with two EC fans, two filters, two manual adjustable air shutters, a copper heat exchanger, and a heater.
The base version has built-in temperature and humidity sensors, while the «Pro» version is supplemented with a CO₂ and tVOC sensor.
Creates balanced ventilation.
Simultaneously supplies and extracts air through a single hole in the outer wall.
Reducing heat losses caused by ventilation due to heat recovery.
Humidity balance and controllable air exchange create individually controlled microclimate.

Functions

3 speeds, individual adjustment of both fans from 10 to 100 %
Two individually adjustable manual air shutters
Electric heater with automatic switch-on when the temperature drops
Wi-Fi and Google Assistant

RH%, CO₂, VOC sensors
Week schedule
Night timer
Turbo timer
Filter maintenance indication
Alerts notifications

Operation modes

Design

Heat exchanger

ADVANTAGES

high-quality copper is traditionally widely used in ventilation and air conditioning systems; this material guarantees
the product significant thermal conductivity and antiseptic properties;
the patented design of wavy fins significantly increases the heat transfer area and enhances the efficiency of heat recovery, all within a compact unit size;
the heat exchanger's design and automated assembly ensure the tightness of the heat exchanger, while the absence of gaps and porous materials prevents contamination and the proliferation of fungi and bacteria;
the design of the heat exchanger has low air resistance, so the fans consume less power and create less noise.

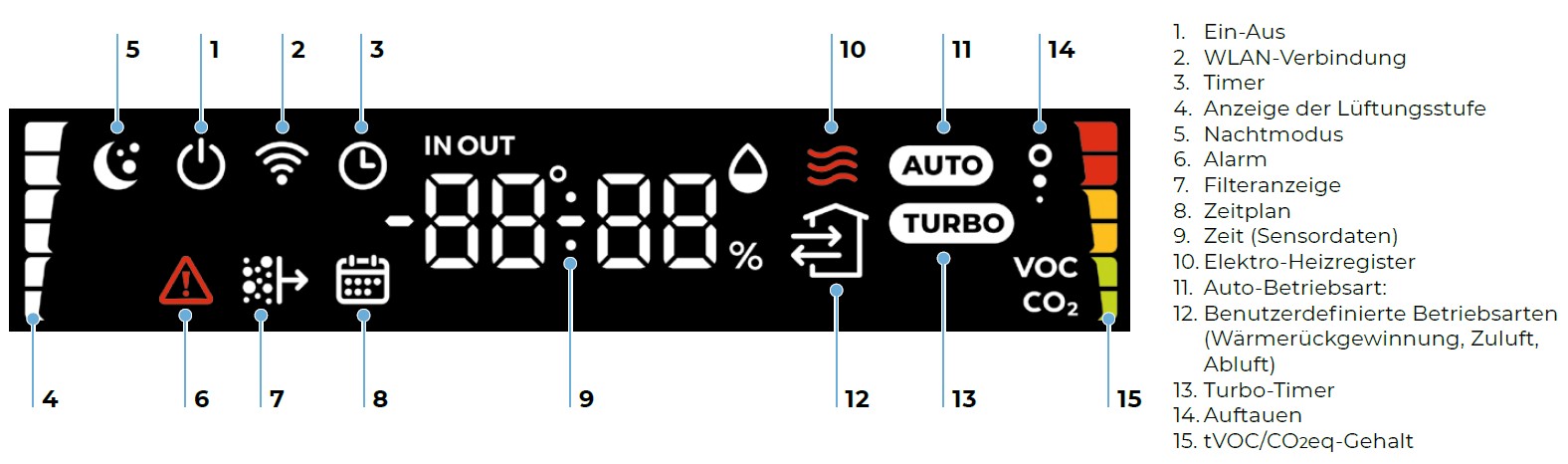

Information display

The brightness intensity of the information screen is automatically adjusted by the built-in light sensor. The display of information on the scoreboard is configured in the smartphone application.

All functions in your smartphone

The device is equipped with a built-in Wi-Fi module for wireless communication via a smartphone with Android or iOS.

Freshpoint controls home ventilation via a cloud service from anywhere in the world.

AND EVEN MORE

Just say «Hey Google» and test, control and run Freshpoint in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.

* Important: The feature availability could depend on your country, region and language. Check it for your speaker/smartphone or ask its manufacturer.

Lineup Blauberg Freshpoint	Connected air duct size, mm	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Heat exchanger material
Blauberg Freshpoint 160-E	160	57	42	Copper
Blauberg Freshpoint 160-E Pro	160	57	42	Copper
Blauberg Freshpoint 160-E Pro L055	160	57	42	Copper
Blauberg Freshpoint 160-E L055	160	57	42	Copper
Blauberg Freshpoint 160-E L07	160	57	42	Copper
Blauberg Freshpoint 160-E Pro L07	160	57	42	Copper
Blauberg Freshpoint 160-E L1	160	57	42	Copper
Blauberg Freshpoint 160-E Pro L1	160	57	42	Copper
Blauberg Freshpoint 200-E	200	70	45	Copper
Blauberg Freshpoint 200-E Pro	200	70	45	Copper
Blauberg Freshpoint 200-E L055	200	70	45	Copper
Blauberg Freshpoint 200-E Pro L055	200	70	45	Copper
Blauberg Freshpoint 200-E L07	200	70	45	Copper
Blauberg Freshpoint 200-E Pro L07	200	70	45	Copper
Blauberg Freshpoint 200-E L1	200	70	45	Copper
Blauberg Freshpoint 200-E Pro L1	200	70	45	Copper
