Series Blauberg Alphaceram

Name: Blauberg Alphaceram
Brand: VENTS
Availability: InStock

New

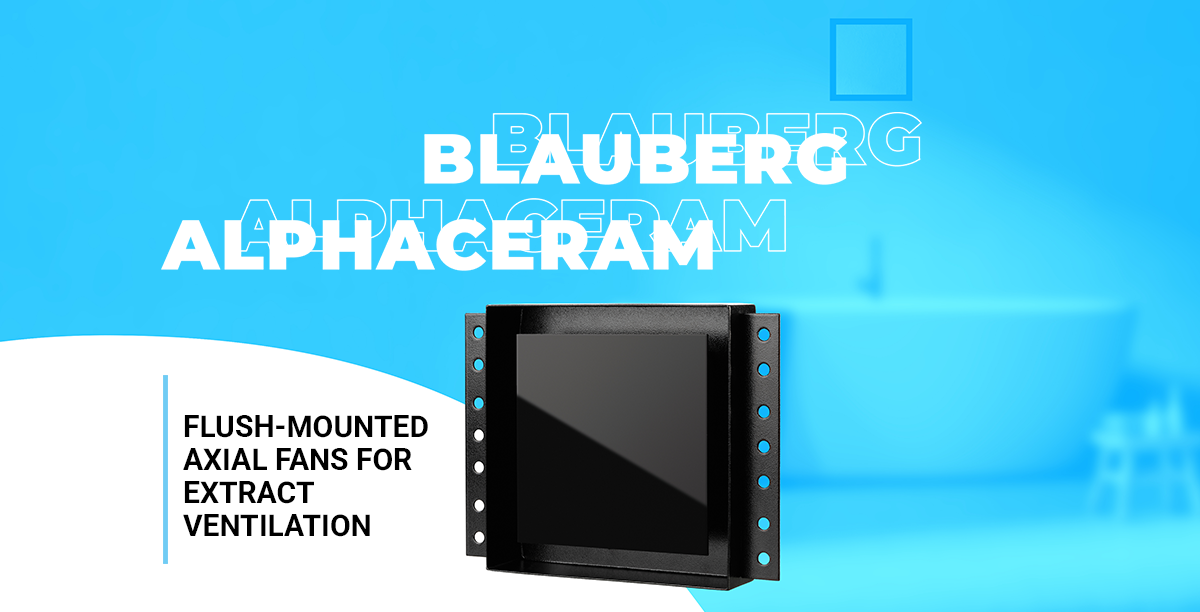

Flush-mounted axial fans for extract ventilation

Features

Air flow: up to 113 m³/h
25 l/s

Noise level: from 33 dBA

Power: from 14 W
SFP: from 0.51 W/l/s

Motor type: AC

Impeller type: Axial

Humidity sensor


White	Vintage	Grey

Lineup Blauberg Alphaceram	Connected air duct size, mm	Rated power, W	Maximum airflow, m³/h	Sound pressure level LpA at 3 m, dB(A)	Timer	Number of speeds
Alphaceram 100	100	14	90	33		1
Alphaceram 100 T	100	14	90	33	Turn off timer	1
Alphaceram 100 H	100	14	90	33	Turn off timer	1
Alphaceram Max 100	100	16	113	37		1
Alphaceram Max 100 T	100	16	113	37	Turn off timer	1
Alphaceram Max 100 H	100	16	113	37	Turn off timer	1
Alphaceram 125	125	16	172	35		1
Alphaceram 125 T	125	16	172	35	Turn off timer	1
Alphaceram 125 H	125	16	172	35	Turn off timer	1
Alphaceram Max 125	125	17	215	37		1
Alphaceram Max 125 T	125	17	215	37	Turn off timer	1
Alphaceram Max 125 H	125	17	215	37	Turn off timer	1

Datasheet

Alphaceram - data sheet

559 Kb

Manual

Alphaceram - user's manual (B324EN-02)

1.51 Mb


Alphaceram - image 1

566 Kb
