| Unit of measurement | Sileo Design DC 100 H | ||
| Speed | - | 1 | 2 |
| Connected air duct size | mm | 100 | |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50/60 | |
| Rated power | W | 1.5 | 2.7 |
| Unit current | A | 0.026 | 0.04 |
| Maximum airflow | m³/h | 58 | 93 |
| Rotation speed at 50hz | - | 1850 | 2650 |
| Sound pressure level LpA at 3 m | dB(A) | 21 | 26 |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IP45 | |
| Impeller material | - | Plastic | |
| Article | - | 8054839 | |
| Trademark | Blauberg | |||||
| Model | Sileo Design DC 100 H | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -54.9 | A+ | -27.8 | B | -12.3 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | 2-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 93 | |||||
| Electric power input (W) | 2.7 | |||||
| Reference flow rate (m³/s) | 0.016 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.026 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 41 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 19 | 19 | 19 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||

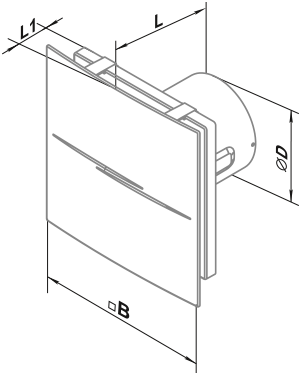

| ∅ D | B | L | L1 |
|---|---|---|---|
| 99 | 200 | 131 | 50 |
