Series Blauberg Turbo

Name: Turbo
Uploaded: 2026-07-10T00:31:54+03:00
Description: Mixed-flow inline fans

Mixed-flow inline fans

Impeller type: Mixed-flow

The Blauberg Turbo series fans are used in supply or exhaust ventilation systems for various types of rooms; in particular, they are suitable for use in kitchens and bathrooms. Designed for round air ducts with a diameter of 100 to 315 mm.

Design

The casing is made of low-flammability polypropylene.

The fan is equipped with a terminal box, which can be rotated to any position.

The impeller ensures efficient fan operation with an optimal balance of airflow and noise level.

The special casing design makes it easy to remove the impeller and motor unit for fan maintenance without dismantling the air duct.

Motor

Two-speed single-phase motor with ball bearings. Equipped with overheating protection.

Mounting

Blauberg Turbo series fans are suitable for floor, wall, and suspended mounting.

The fan can be installed at any point in the ventilation system—from the air intake point to the end sections of the air ducts.

Several fans can be installed in parallel within a single system for higher air flow or in series to increase operating pressure.

TD: mounting kit for installing fans of the same diameter in parallel (to increase air flow).

TL: mounting kit for installing fans of the same diameter in series (to increase pressure).

Modifications

A wide range of modifications enables you to select the optimal solution for various needs.

Name	Description
Turbo T	turn-off delay timer adjustable from 2 to 30 minutes
Turbo US	three-position speed switch
Turbo FR1	smooth speed controller adjustable from 0 to 100 % and power cable with mains plug
Turbo G1	speed controller, temperature controller with external temperature sensor, power cable with mains plug
Turbo GT1	speed controller, temperature controller with external temperature sensor, 5 min timer switch and power cable with mains plug
Turbo Gl1	speed controller, temperature controller with integrated temperature sensor and power cable mains plug
Turbo GTl1	speed controller, temperature controller with integrated temperature sensor, 5 min timer switch and power cable with mains plug
Turbo W1	power cable with mains plug

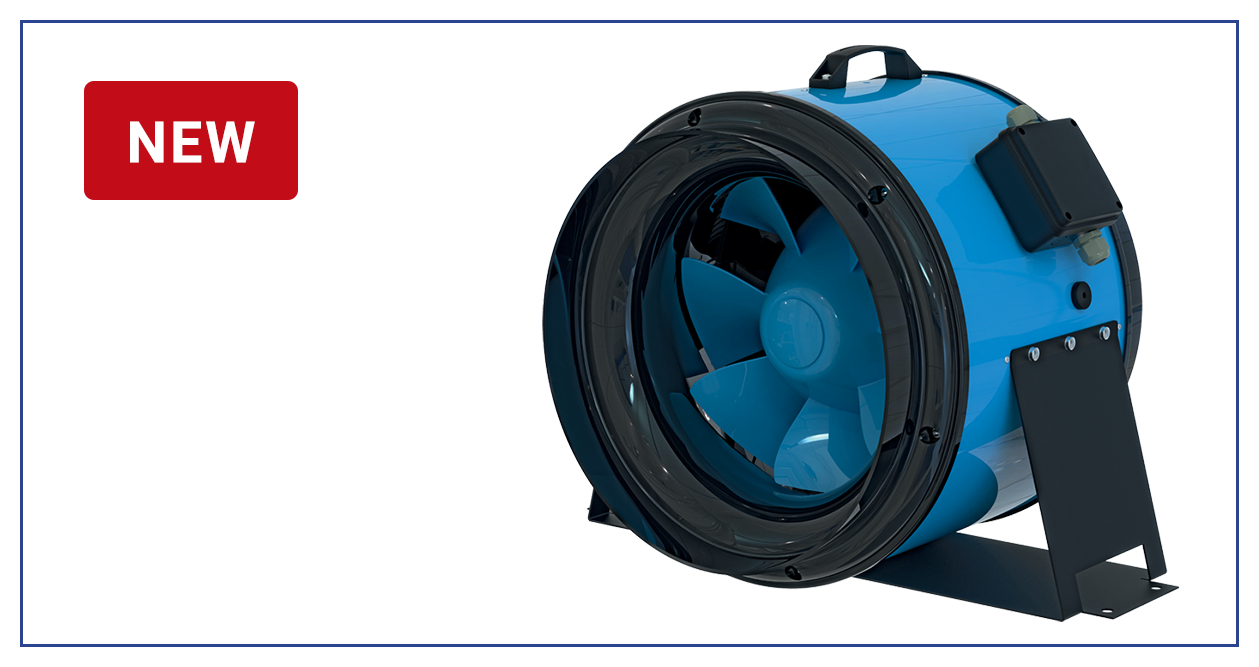

Innovative series of fans with a new-generation impeller - BLAUBERG PRIMO

Thanks to its new-generation impeller, the Blauberg Primo fan provides an air flow of up to 3,350 m³/h, combining high energy efficiency, low noise level, and ease of installation and maintenance.
Designed for air ducts with diameters ranging from 150 to 400 mm.
The improved three-speed motor offers optimal operating mode selection; there are also models with three-speed AC motors and energy-efficient EC motors available.

Filters: Connected air duct size: 100

Lineup Blauberg Turbo	Connected air duct size, mm	Phases	Rated power, W	Maximum airflow, m³/h	Timer	Number of speeds
Turbo 100	100	1	25	245		2
Turbo 100 FR1	100	1	25	245		2
Turbo 100 W1	100	1	25	245		2
Turbo 100 US	100	1	25	245		2
Turbo 100 USW1	100	1	25	245		2
Turbo 100 T	100	1	25	245	Turn off timer	2
Turbo 100 TUS	100	1	25	245	Turn off timer	2
Turbo 100 GI1	100	1	25	245		2
Turbo 100 GTI1	100	1	25	245	Turn off timer	2
Turbo 100 GT1	100	1	25	245	Turn off timer	2
Turbo 100 G1	100	1	25	245		2
