| Unit of measurement | CDR5E D4.0 M | |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50/60 |
| Unit current | A | 4 |
| Weight | kg | 18.2 |
| Ambient air temperature min | °С | -20 |
| Ambient air temperature max | °С | 35 |
| Ingress protection rating | - | IP54 |

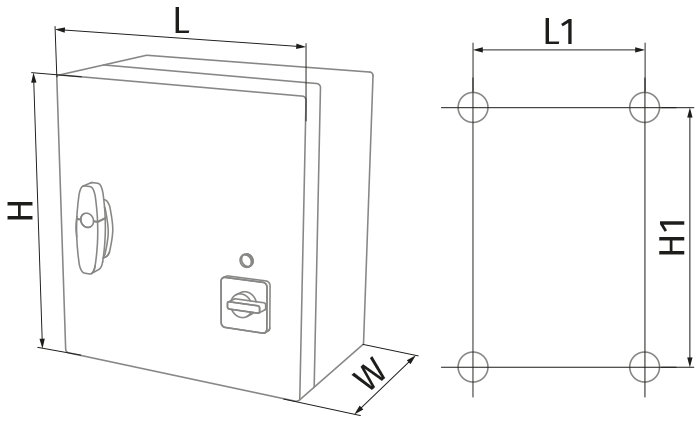

| L | H | W | L1 | H1 |
|---|---|---|---|---|
| 300 | 425 | 185 | 255 | 355 |
